Guitar Fretboard Radius Jig
Guitar Fretboard Radius Jig
Designed by a Guitar Builder, for Guitar Builders

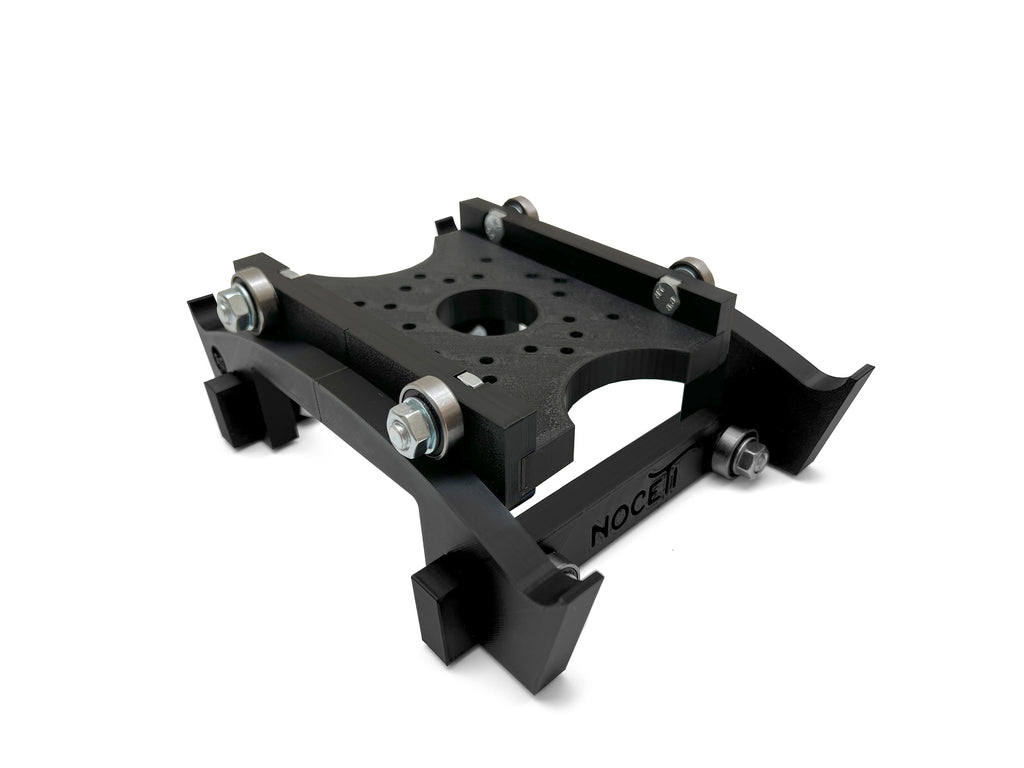

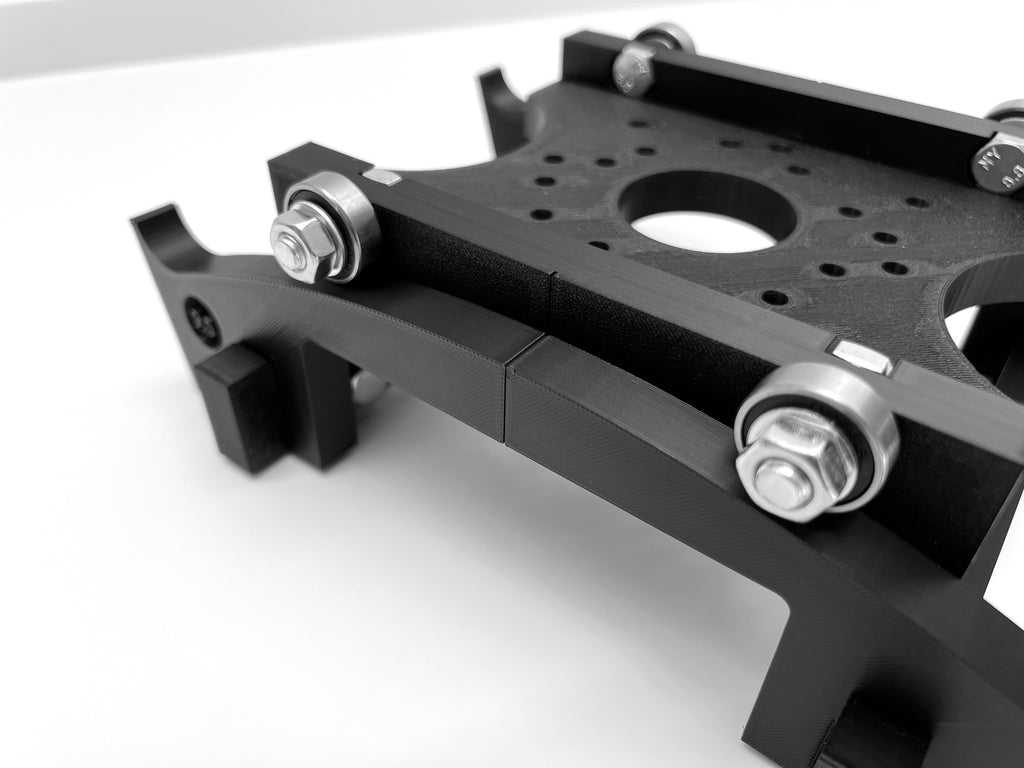

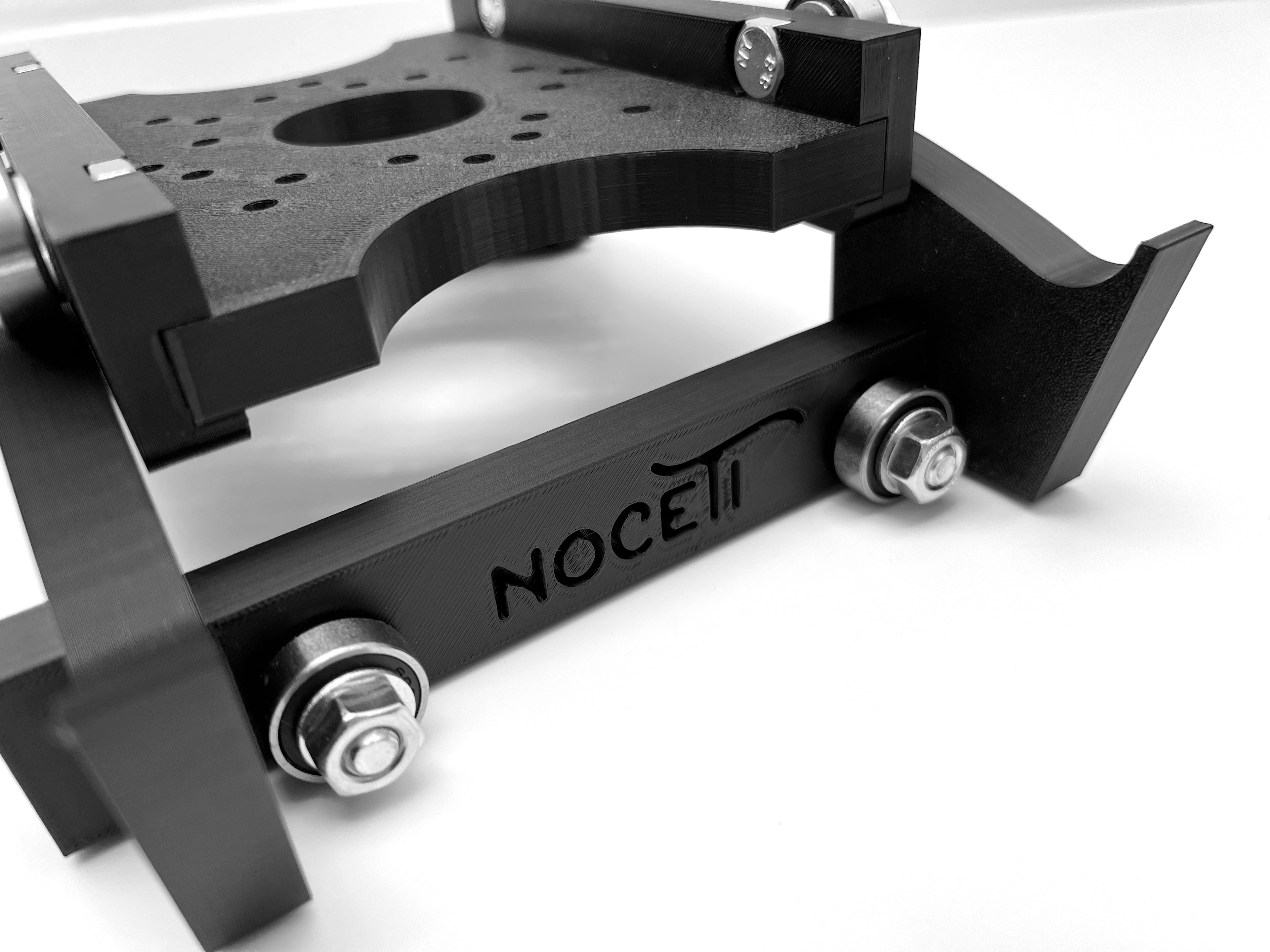

The Noceti Fretboard Radius Jig is a precision routing system designed to radius guitar fretboards faster and with greater accuracy and consistency than sanding by hand.
Compatible with six popular compact routers, it delivers repeatable, professional results while saving hours of shop time.
Whether you're building your first neck or your fiftieth, this jig helps you produce precise fretboard radii with confidence.
Features
- 4.5" wide opening clears larger headstocks
- Multi-router compatibility with interchangeable mounting plates
- Built-in centerlines for faster setup
- Visibility cutouts improve routing accuracy
- Precision CNC-machined components
- Available in 7.25", 9.5", 10", 12", 14", 15", 16", 18", and 20" radii

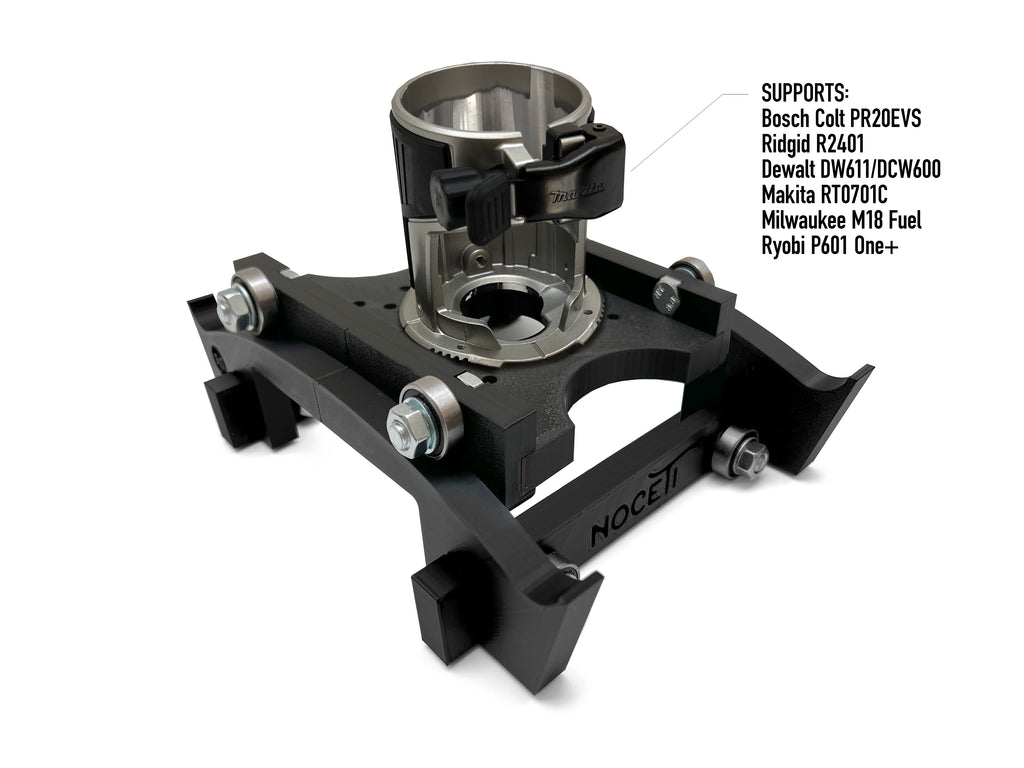

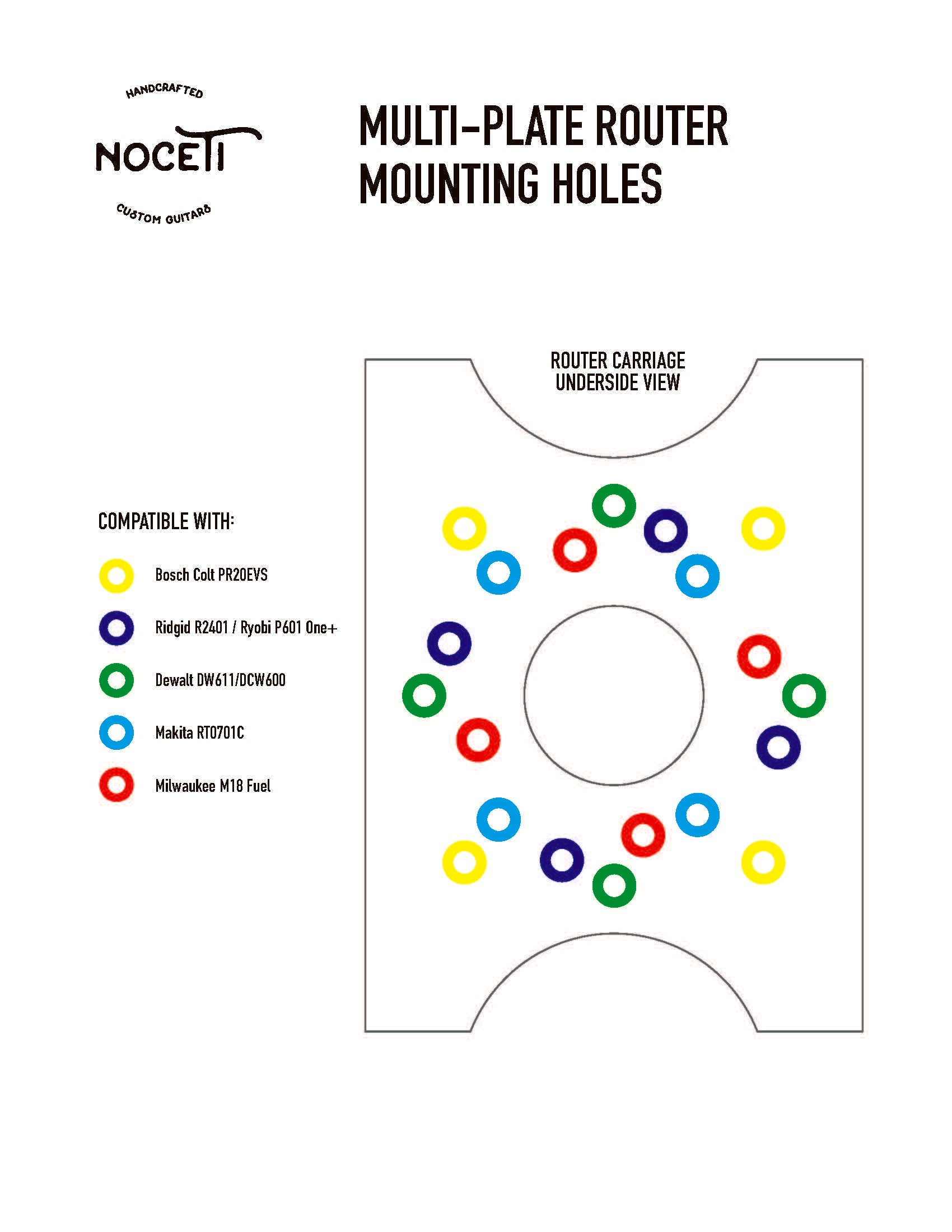

Compatible Routers
- Bosch Colt PR20EVS
- DeWalt DWP611 / DCW600
- Makita RT0701C
- Ridgid R2401
- Ryobi P601 ONE+
- Milwaukee M18 Fuel
What's Included

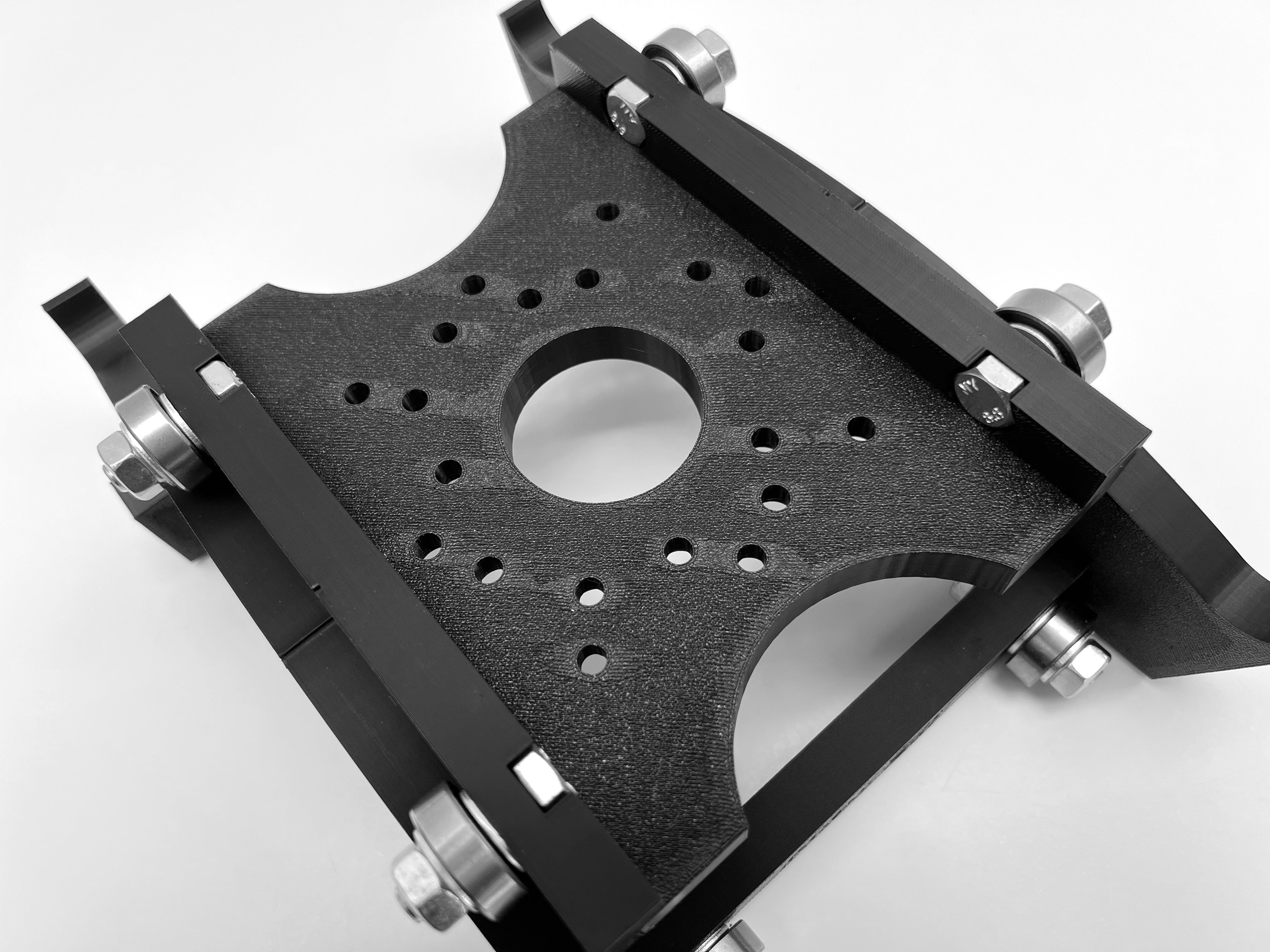

- 1× Multi-Plate Router Carriage (with your selected router mounting plate)

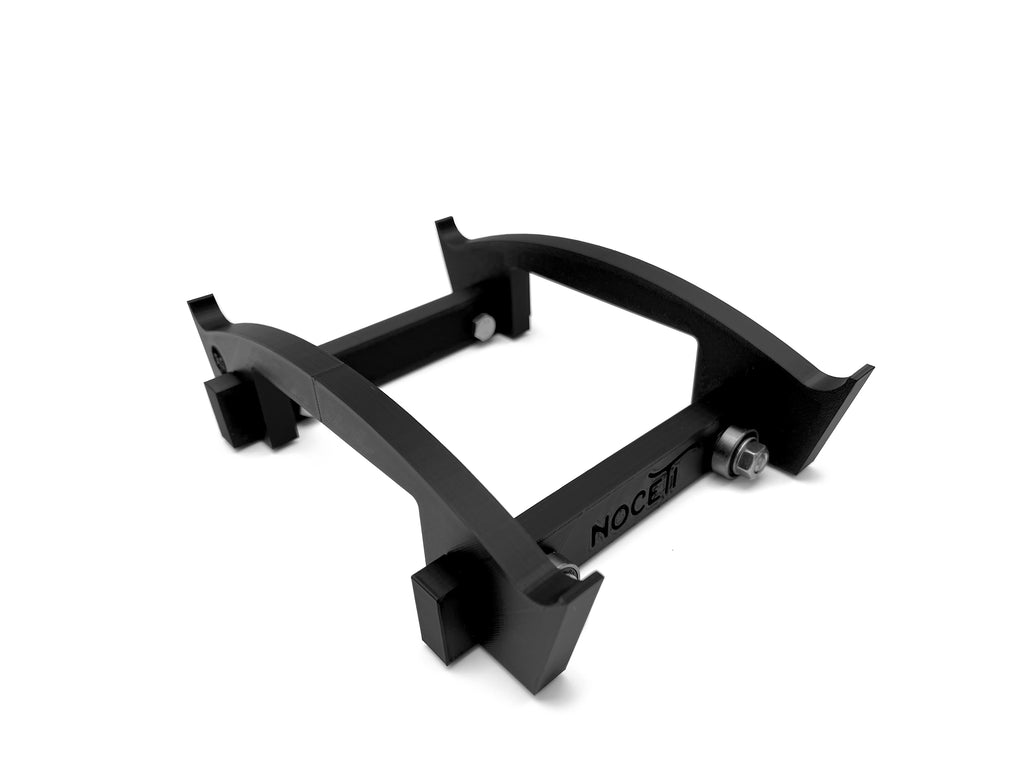

- 1× Radius Carriage (4.5" opening)
- Required assembly hardware
Additional router carriages and radius carriages are available separately.
How It Works

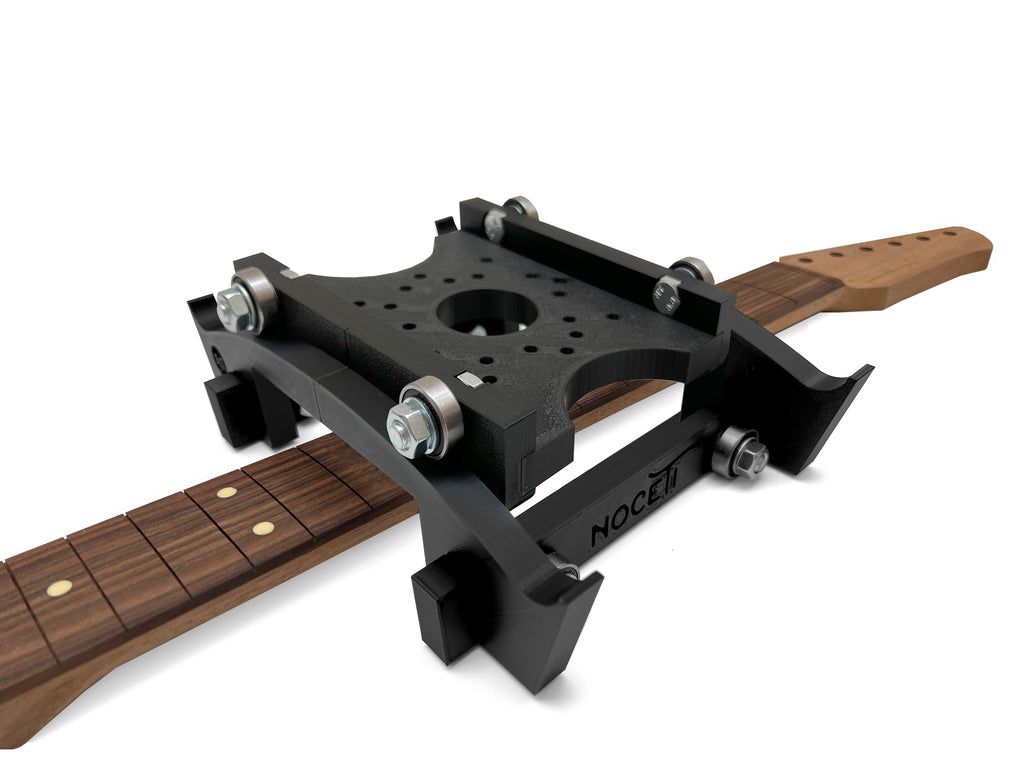

- Mount your guitar neck to a simple MDF platform using double-sided tape.

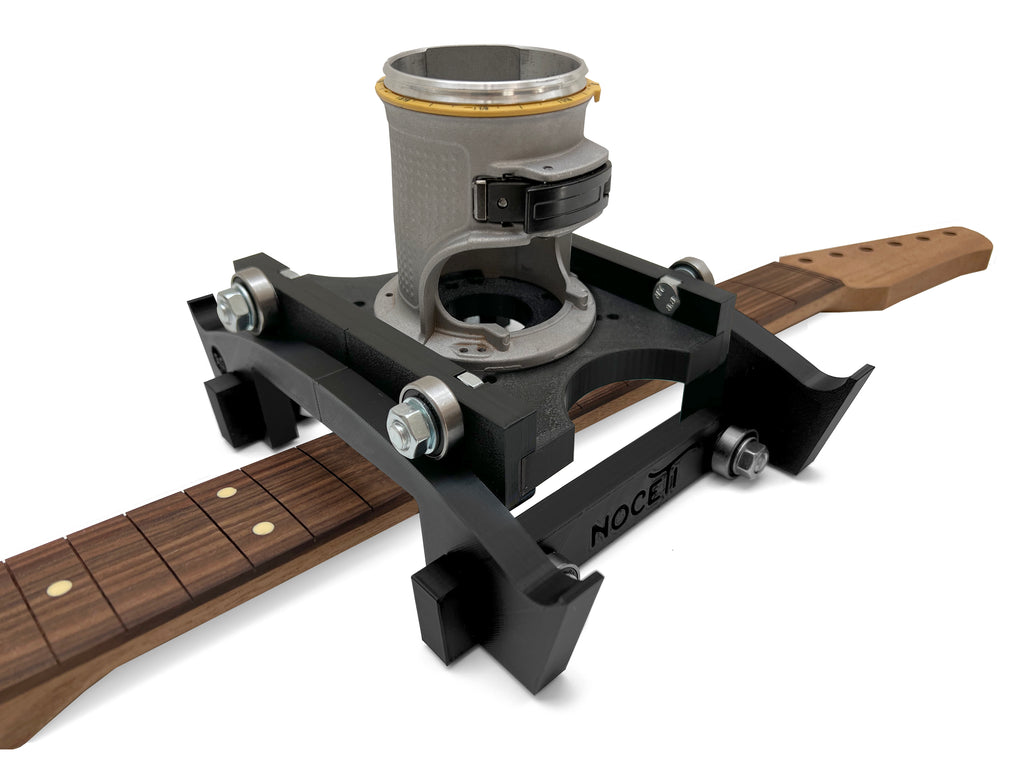

- Attach your compact router to the included router carriage.
- Set your cutting depth.
- Route the fretboard until the desired radius is achieved.
- Finish with light sanding for a smooth, professional surface.

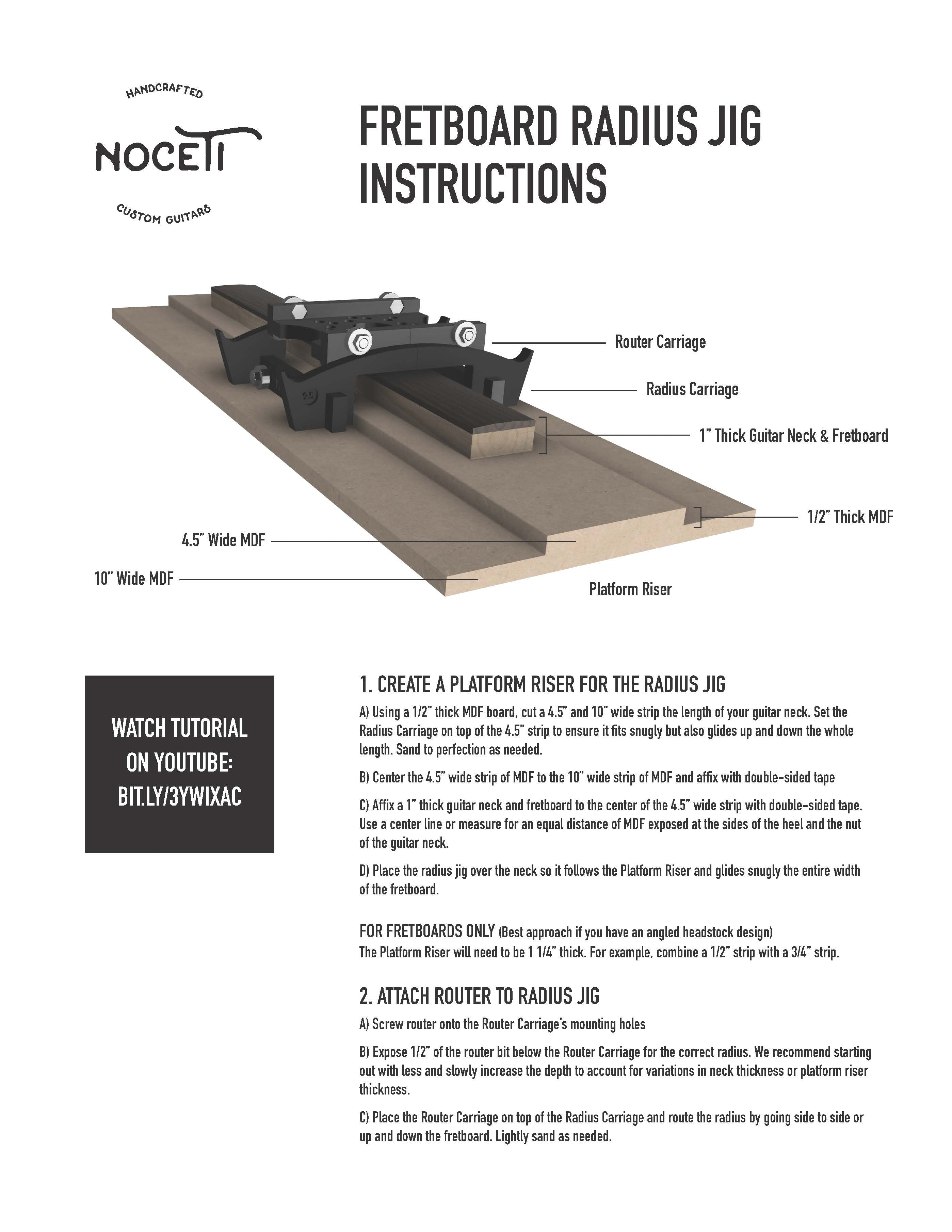

A detailed setup guide and video tutorial help you get started quickly and confidently.
Why I Built It
After radiusing countless fretboards by hand, I wanted a system that was faster, more repeatable, and compatible with the compact routers many builders already own.
Every version of this jig has been refined through real use in my own shop before being offered to other builders.
Unlike generic woodworking jigs, this system was designed from the ground up for guitar building.
