Guitar Neck Profile Templates
Guitar Neck Profile Templates
Accurately Shape Guitar Neck Profiles

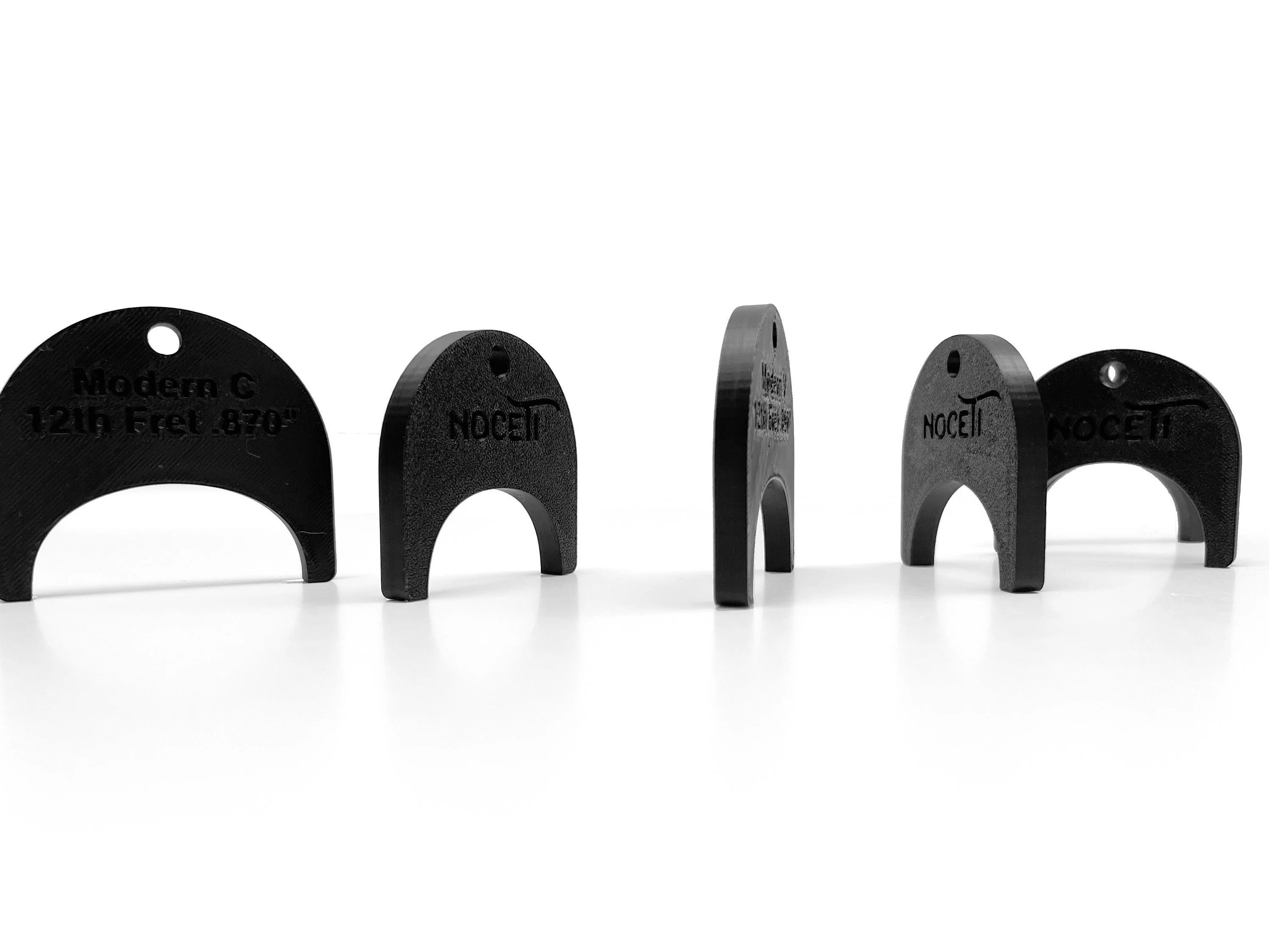

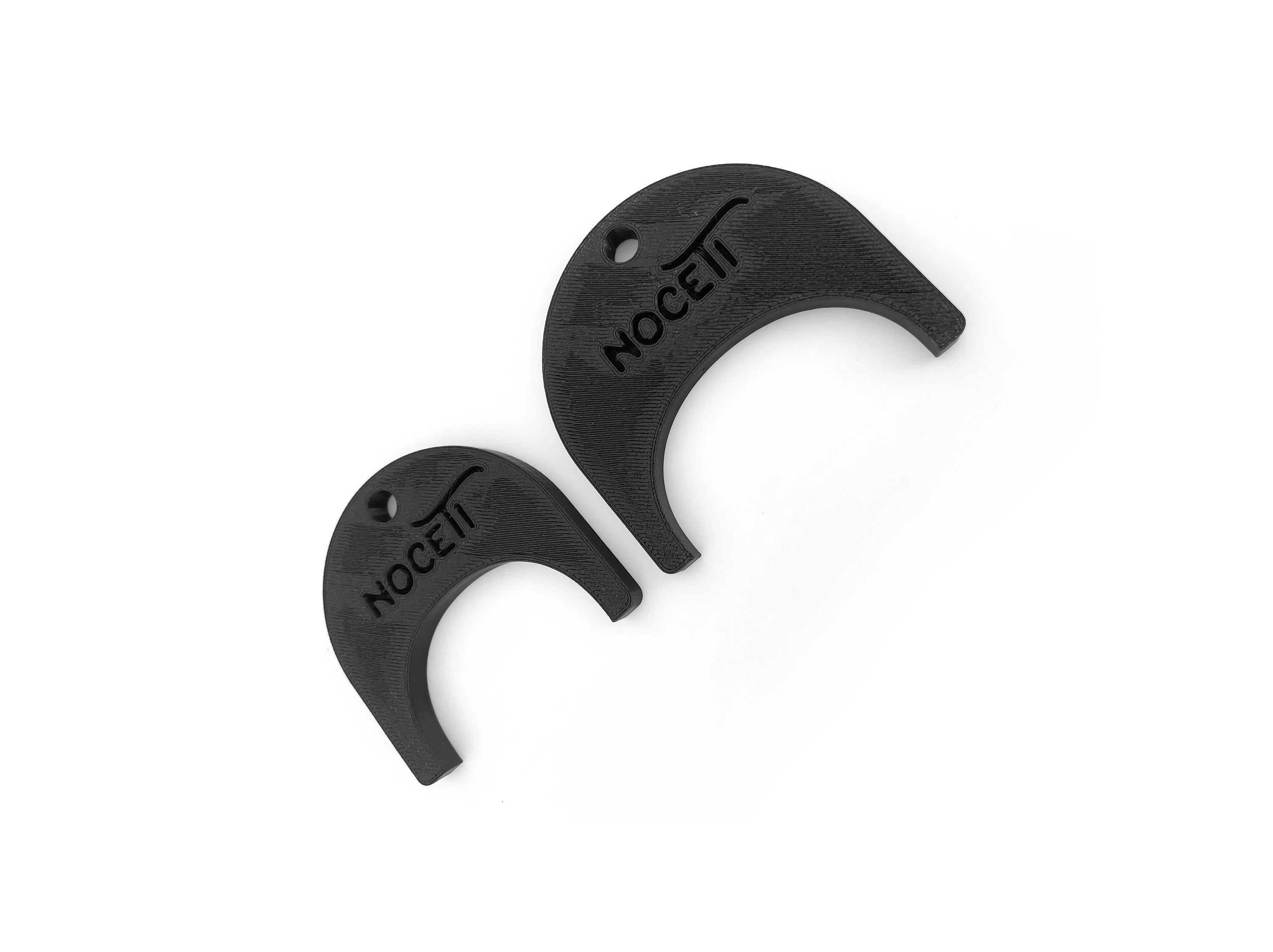

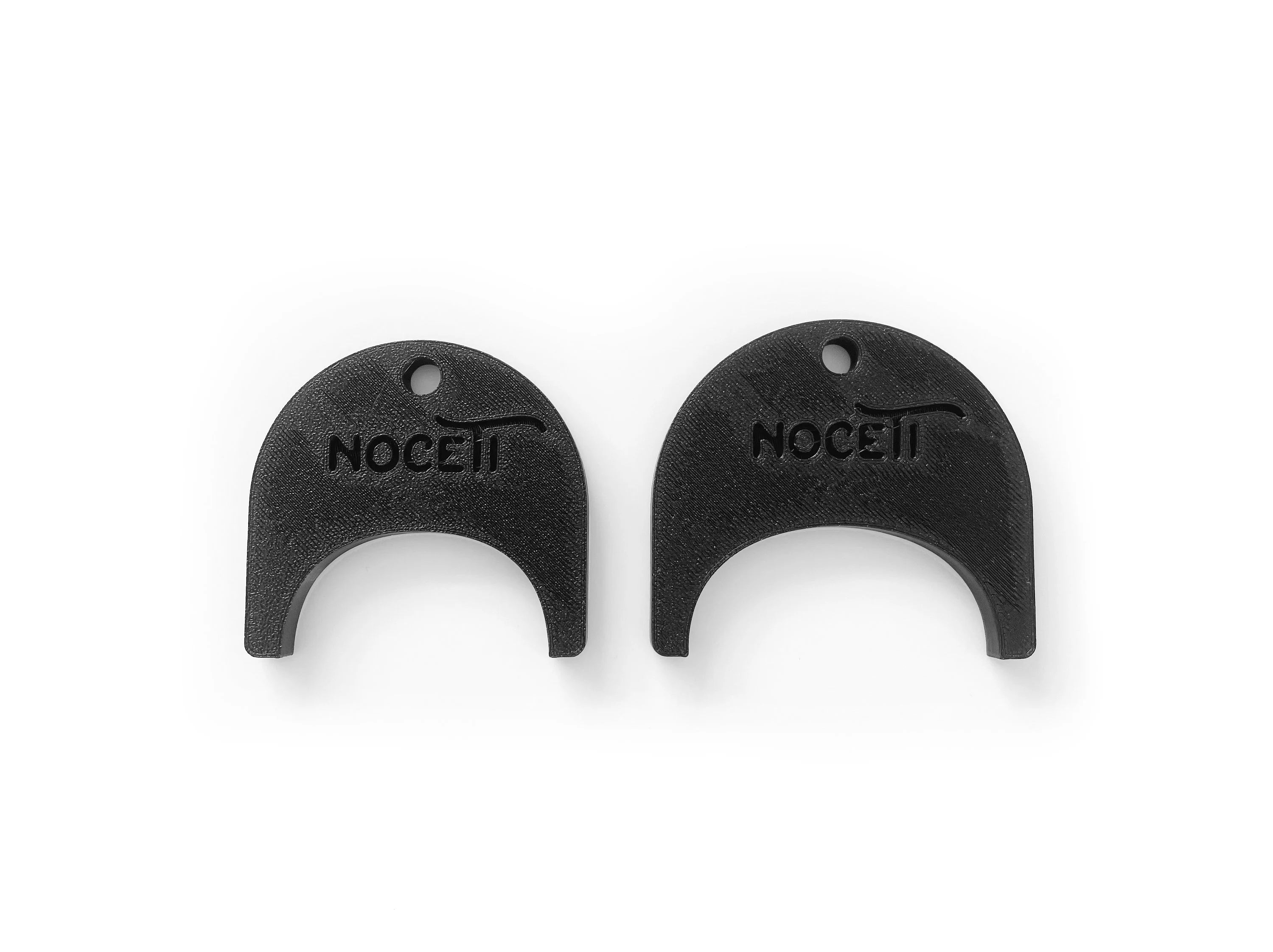

These Guitar Neck Profile Templates help you accurately shape guitar necks while carving by hand. Each set includes matching templates for the 1st and 12th frets, making it easy to reproduce popular neck profiles while creating smooth transitions along the length of the neck.
Whether you're building a new instrument or modifying an existing neck, these templates provide a quick and repeatable reference throughout the carving process.
Features
- Includes matching 1st and 12th fret templates
- Provides a quick reference while carving
- Helps create smooth transitions between fret positions
- Designed in CAD and professionally 3D printed
- Lightweight, durable, and easy to use
- Developed from real-world guitar building experience
How to Use
- Apply a non-permanent marker to the underside of the template.
- Press the template against the neck.
- The transferred marker highlights high spots that need additional shaping.
- Repeat the process until the neck matches the desired profile, blending smoothly between the 1st and 12th frets.

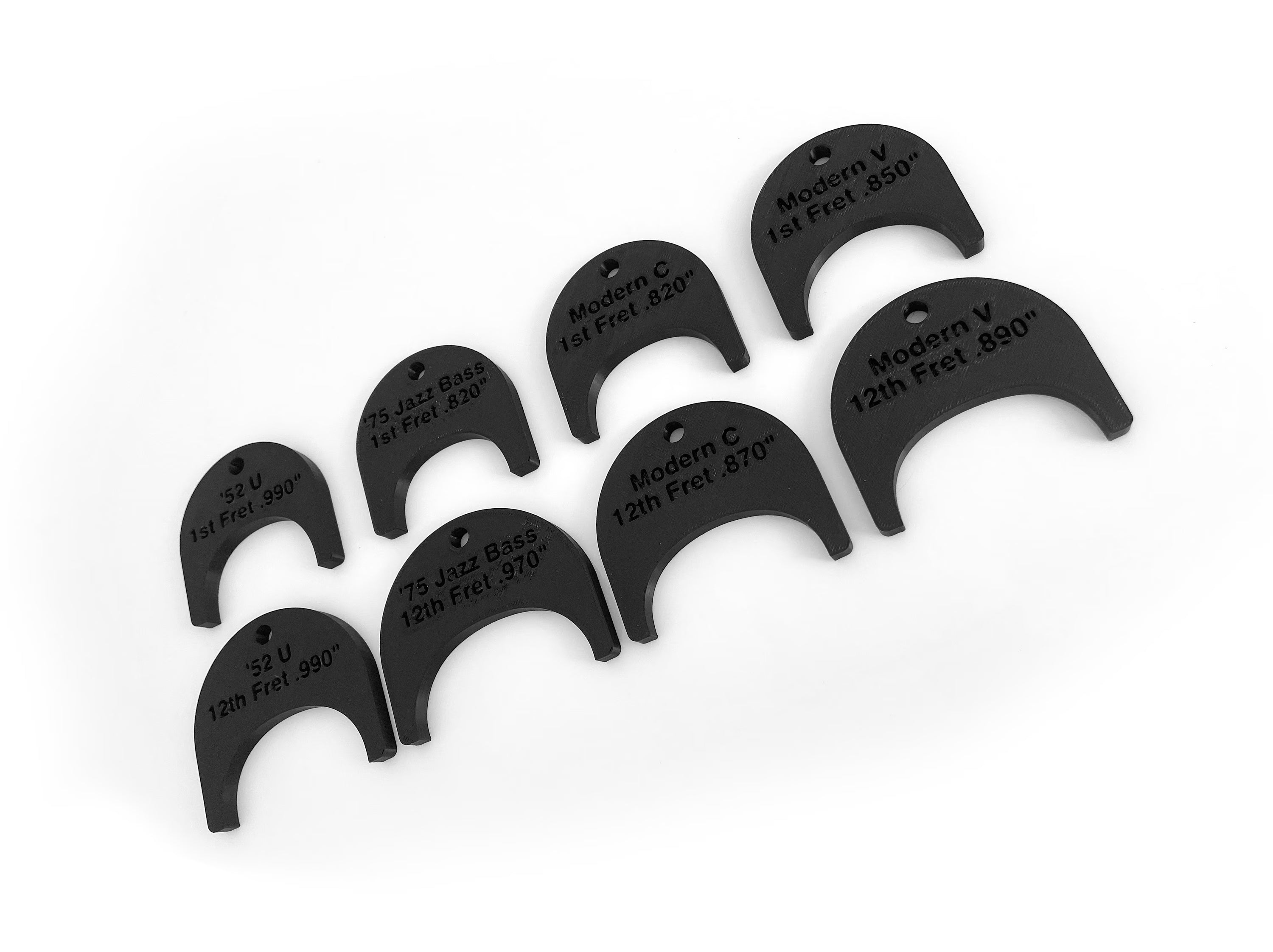

Available Guitar Profiles
| Profile | 1st Fret | 12th Fret |
|---|---|---|

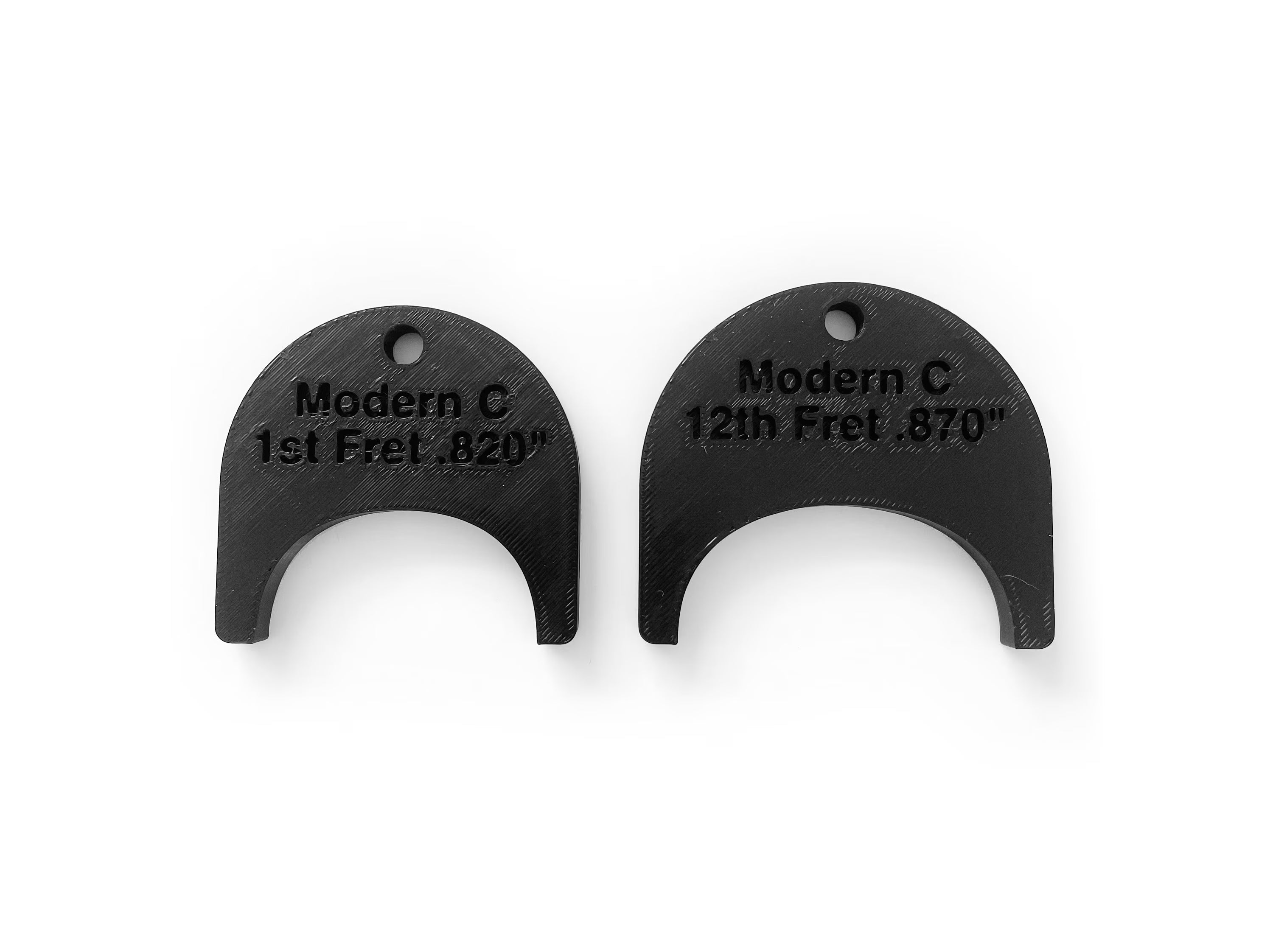

| Modern C | .820" | .870" |
| Large C | .875" | .950" |
| '59 C | .790" | .970" |
| '65 C | .820" | .974" |
| Modern V | .850" | .890" |
| '57 Soft V | .850" | .990" |

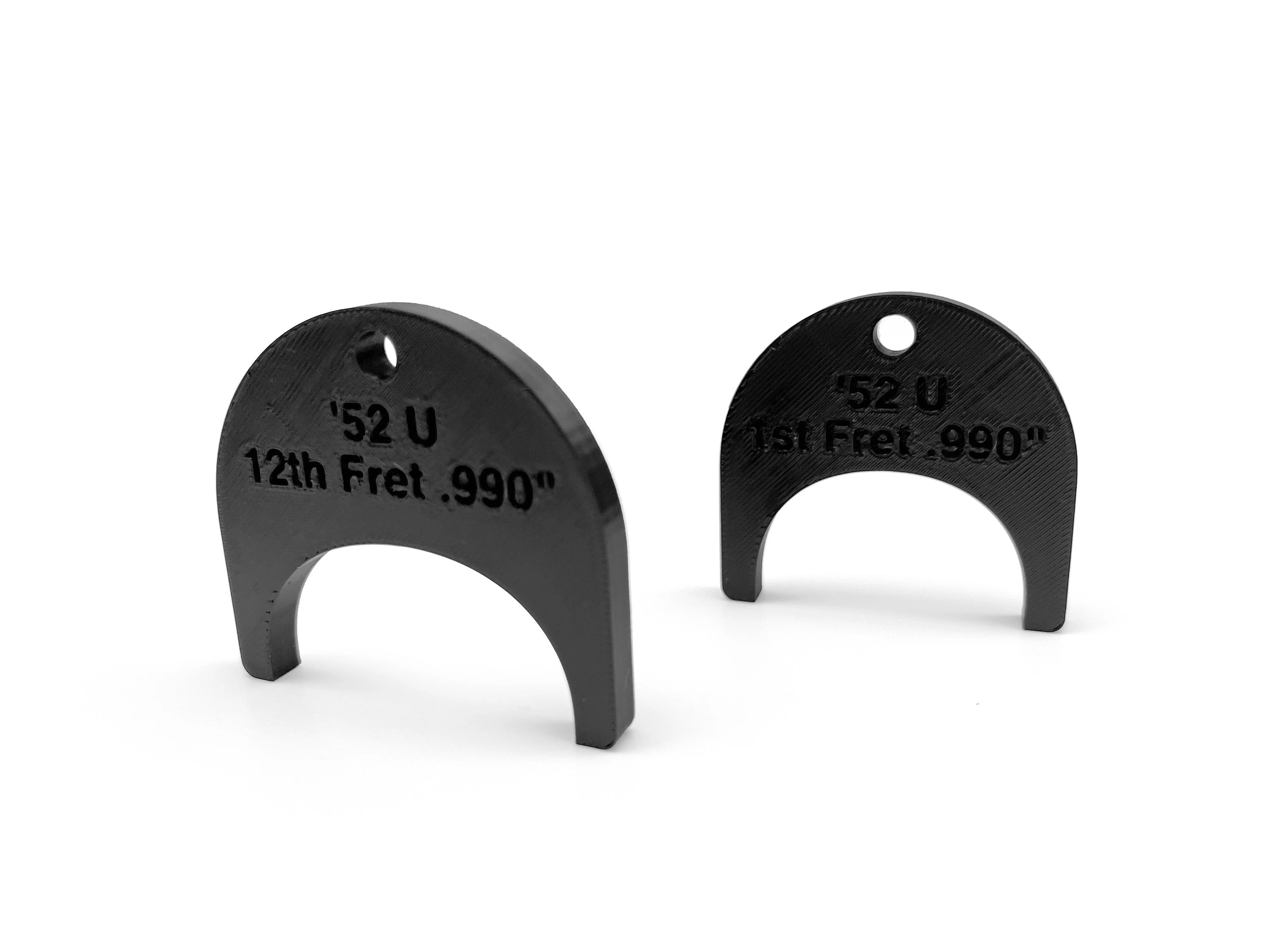

| '52 U | .990" | .990" |
| 10/56 V | .880" | .980" |
Available Bass Profiles
| Profile | 1st Fret | 12th Fret |
|---|---|---|
| '51 P Bass U | .940" | .990" |
| '55 P Bass Soft V | .925" | .950" |
| '60 P Bass Oval C | .790" | .990" |
| '75 Jazz Bass | .820" | .970" |
What's Included
- (1) 1st Fret Template
- (1) 12th Fret Template
Why I Built It
Carving a comfortable guitar neck by hand takes time, patience, and constant checking.
I created these templates as a quick, repeatable reference for shaping necks by hand and checking progress throughout the carving process.
Although I now machine most neck profiles on a CNC, these templates remain a simple, reliable tool for builders who prefer to carve by hand or verify a finished profile.
